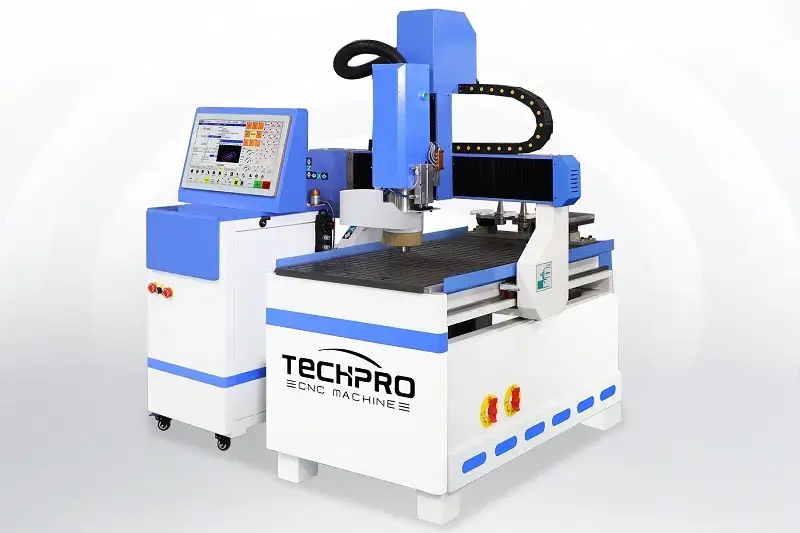

Mini 6090 Hobby CNC Router Table Type Machine for Wood Aluminum MDF

Affordable hobby CNC router table type machine, which use for 2d, 3d carving on wood, acrylic, plastic and some metal, now we have the best discount on 6090 cnc router machine price for sale.

Parts of 6090 CNC Router Table Type Machine

1. It adopt 2.2kw water cooling spindle, with better cooling effect and longer lifetime.

2. With DSP control system, easy use and operate.

3. Independent controlling cabinet, separation of strong electricity and weak electricity to make the maintenance more convenient.

4. High torque stepper driver, then can ensure high precision under high speed.

5. High precision ball screw of X Y Z axis , which move smoothly to ensure machining precision.

Application of Hobby CNC Router Table Type Machine

Advertising industry: such as LED word, bevel edge word, acrylic lighting word and high-end advertising word .

Woodworking industry: such as building model, plastic and wood, MDF, instrument, wooden door and cabinet.

Also applies the carving on copper, aluminum, iron plate and cutting processing industry.

Applications of Mini 6090 CNC Router Kit

The Mini 6090 CNC Router Kit is a compact and versatile machine that can be used for a variety of applications such as precision cutting, engraving and milling. Its main uses include:

1. Woodworking: Ideal for carving, engraving and milling wood for furniture, signs and custom designs.
2. Plastic Processing: Used to cut and engrave acrylic, PVC and other plastics to create prototypes, signs and custom parts.
3. Metalworking: Milling soft metals such as aluminum and brass to create precision parts and custom components.
4. Sign Making: Engrave and cut custom signs, logos and plaques from materials such as wood, metal and acrylic.
5. Prototyping: Prototyping and modeling for a wide range of applications in the engineering and design industries.
6. Arts & Crafts: Intricate sculptures, personalized gifts and fine engraving for a variety of craft projects.
7. Textiles and Leather: For engraving and cutting leather and fabric to customize designs and products.
8. Educational Use: The Mini 6090 CNC Router Kit is ideal for teaching CAD/CAM principles and learning about CNC machining.

This machine is popular with small businesses, hobbyists, and educational institutions for its accuracy, affordability, and ability to work with a wide range of materials.

Applicable Materials

The main materials that can be machined on the Mini 6090 CNC router kit include:

1. Wood: Softwood, hardwood, plywood, MDF and veneered wood.
2. Plastics: Acrylic (PMMA), PVC, polycarbonate and ABS.
3. Metals: Soft metals such as aluminum, brass, copper and some mild steel (using appropriate tools).
4. Composites: Carbon fiber, fiberglass and resin-based materials.
5. Stone: Soft stones such as marble and limestone for carving or light milling.
6. Leather: For carving or cutting detailed designs.
7. Foam: Various types of foam (such as polystyrene and polyurethane) for modeling or prototyping.
8. Textiles: Fabrics for engraving or cutting customized designs.

Technical Parameters of Mini 6090 CNC Router 4 Axis Machine for sale

Features and Benefits of Mini 4 Axis 6090 CNC Router

1. Working area: 600 x 900 mm (table top)

The right size for medium to small projects, allowing a range of tasks such as engraving, milling and cutting on different materials.

2. Maximum material height: 150 mm

Can cut or engrave materials up to 150 mm thick, suitable for a wide range of applications.

3. Water-cooled spindle power: 2.2 kW

The 2.2 kW water-cooled spindle can handle medium to heavy materials and efficiently increase uptime.

Stable operation is ensured by the water cooling system that keeps the spindle at the ideal temperature.

4. Spindle speed: 0-24,000 RPM

The high spindle speed range is suitable for fine milling, cutting and detailed engraving of a variety of materials.

5. Control system: RichAuto-A11 DSP control system

The DSP control system is a stand-alone controller that does not require a PC for operation, simplifying use for small businesses and hobbyists.

A reliable and intuitive interface for machine control.

6. Motor and drive: Leadshine stepper motor and drive

Leadshine motors and drives are renowned for their high precision and smooth operation.

Stepper motors provide reliable, precise movement for CNC machine tools.

7. Drive: TBI ball-screw drive for X, Y and Z axes

The TBI ball-screw drive ensures smooth, precise movement of the machine and minimizes component play, resulting in high-precision processing.

8. Optimum rapid traverse speed: 33 m/min

The high maximum traverse speed enables the processing axes to move quickly across the table without any loss of precision.

9. Maximum working speed: 25 m/min

The working speed is the maximum speed at which the machine can maintain the actual cutting or engraving operation. This speed is suitable for high-throughput production.

10. Repeat accuracy: 0.025 mm

Very fine repeatability ensures high consistency and accuracy in repeated operations on the same material.

11. Table: T-slotted aluminum with PVC protection

The T-groove aluminum work surface allows flexible and secure workpiece fixation.

PVC protection protects the surface from damage and wear.

12. Frame: Cast iron

The cast iron frame provides a sturdy, stable base that reduces vibration and ensures high-quality results even under load.

13. Operating ambient temperature: 0-45°C

The hobby CNC router table type machine can operate over a wide temperature range, making it suitable for use in a variety of environments.

14. Relative humidity: 30%–75

Ideal for operation in moderately humid environments, ensuring optimal performance and longevity.

15. Command language: G-code

The machine uses the standard G-code programming language, making it compatible with most CAM software and industry-standard CNC machining programs.

16. Power supply: AC 220V or 380V, 50–60Hz

Flexible power supply options: 220V for standard use, 380V for industrial environments that require more power.

17. Net/gross weight: 300/380 kg

Net weight: 300 kg

Gross weight: 380 kg (including packaging and accessories)

The higher weight contributes to the stability of the machine during operation.

Machine Parts of Hobby CNC Router 6090 for sale

Maintenance and Care

Correct maintenance and care of the Mini 6090 CNC Router Kit is essential to ensure its longevity, performance and precision. Here is a concise guide on how to maintain and care for the machine:

1. Cleaning

• Routine cleaning: Regularly remove dust, debris and residue from the router bed, guides and moving parts with a soft cloth or compressed air.
• Spindle cleaning: Clean the spindle after every use to prevent dust and dirt from accumulating. Use a soft brush or cloth to clean the spindle without wetting it.
• Vacuuming: Use a vacuum cleaner or dust removal system to minimise the build-up of material debris.

2. Lubrication

• Guides and lead screws: Lubricate the guides and lead screws regularly (every 50–100 operating hours) with a suitable lubricant (e.g. lithium-based grease or machine oil). This will reduce friction between the components.
• Motors and bearings: Lubricate the motor shafts and bearings according to the instructions given by the manufacturer of the Mini 6090 CNC router kit.

3. Inspect and Tighten Components

• Nuts and bolts: Routinely inspect and tighten all nuts, bolts, and screws on the machine to prevent them from affecting the machining precision of the machine.
• Belt: Examine the tension of the drive belt and make any necessary changes. While a restricted belt will certainly cause excessive wear, a loose belt will minimize accuracy.

4. Spindle Maintenance

• Cooling: If the Mini 6090 CNC Router kit is equipped with a water-cooled spindle, check periodically to see if the coolant needs to be replaced. Make sure the air conditioning is working effectively to prevent overheating.
• Spindle bearings: Maintain the spindle bearings. Over time, they may need to be replaced or oiled to maintain smooth performance.

5. Check Electrical Connections.

• Electrical circuit: Inspect the wiring, electrical connections, and electrical circuit for signs of looseness, rust, or wear. Damaged wiring should be replaced or repaired immediately.
• Control box: Ensure that the control box is clean and free of debris, and periodically check the electrical components in the control box for proper operation.

6. Software Program Updates

• Firmware and software Applications: To obtain maximum performance from your machine, ensure that the firmware and any software applications (e.g., CNC controllers and CAD/CAM software applications) are up to date.

7. Dust Control

• Dust collection system: Using a dust collection system to reduce the buildup of debris around the machine will extend its life.
• Work area cleanliness: Keep the work area around the 6090 CNC Router Kit tidy to prevent dust from getting into vital machine components.

8. Storage

• Humidity control: Store the Mini 6090 CNC Router Kit in a completely dry, cool environment to prevent corrosion or deterioration of metal components. If operating in a location with high humidity, consider using a dehumidifier.
• Handling: When not in use, cover the machine to protect it from dirt and environmental damage.

9. Routine Inspections

• Check accuracy: Ensure that the machine’s cuts and engravings are within the required tolerances by routinely checking its accuracy with a calibration tool.
• General wear: Keep an eye on the condition of heavily worn components such as lead screws, spindles and bearings. Replace as needed to maintain peak performance.

We generally include a dedicated maintenance and care manual with the machine. Maintenance should be carried out in accordance with the manual provided with the machine. In this way, the Mini 6090 CNC Router kit will remain in good working condition and ensure long-term reliable and accurate operation.

Packing and Shipping Information

1). Outside package: with standard marine export plywood box.
2). Inner package: use stretchy film and plastic film.
3). Hobby CNC router 6090 machine packing size: 600*900mm, GW: 300/380kg
CNC machine 6090 size can shipping within 5-7 working days when get your payment.
1). Machine has been adjusted and test 48 hours before delivery.
2). English software, User manual and detail installation and training videos in USB when delivery.
3). Some extra spare parts in the tools box (Such as electrical components, limit switches etc.)

Our Service of Hobby CNC Router 6090 Price

1.) 6090 wood cnc router 4 axis machine warranty: two years on parts when get machine, 3 years for free repair. Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime when get machine.
4.) When you need help, there are 10 oversea technicians and 5 online engineers, 24 hours technical online support by E-mail, Skype online contact software.
5.) 5-7 days free machine training when visit our factory.
6.) International quality certificate: FDA, CE, ISO9001, SGS etc. so this can meet customs requirements.

If you are interested in this affordable 6090 hobby cnc router machine price, then contact with our sales : Get A Gree Quote
